ECO-P80 Shielding Wallpaper: Comprehensive EMF and LF Protection for Your Space

Discover the ECO-P80 Shielding Wallpaper, a technologically advanced solution meticulously engineered to safeguard your commercial or residential environment from both high-frequency radiation (HF) and low-frequency electric fields (NF). Initially designed for professional applications such as data centres, laboratories, and TEMPEST rooms, this wallpaper is now accessible for private use, offering exceptional shielding performance.

Environmentally-Friendly Manufacturing Process and Certified Materials

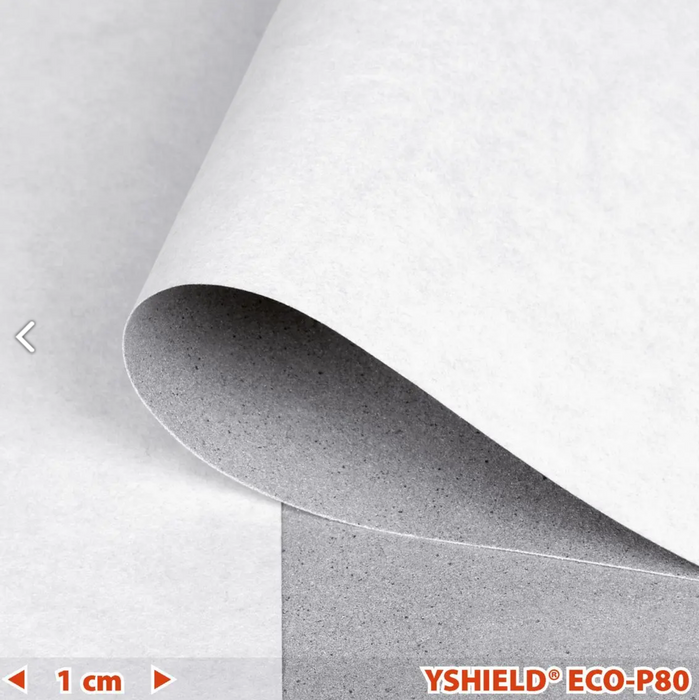

Constructed with a white premium wallpaper backing paper, the ECO-P80 boasts remarkable dimensional stability during and after application. This backing paper is Forest Stewardship Council (FSC) certified and primarily composed of cellulosic pulp in accordance with the European Union Timber Regulation. The minimal polyester fibre content is OEKO-TEX 100 certified, ensuring the highest quality and safety standards.

YSHIELD's innovative coating process distinguishes the ECO-P80 from conventional shielding products. By using green electricity to apply the metal coating to the backing paper, we eliminate the need for harmful chemicals. This eco-friendly approach results in a highly vapour-diffusible product with a spattered metal coating.

Cutting-Edge Metallised Wallpaper for Optimal EMF and Electric Field Attenuation

Tested and approved by TÜV-SÜD, this shielding wallpaper adheres to guideline TM-22 and complies with all tested parameters for heavy metals, SVOC, and emissions. The ECO-P100 is specifically designed to shield high-frequency electromagnetic fields (HF) up to 40 GHz and low-frequency alternating electric fields (LF) with an electrically conductive surface.

Choose Between Two Methods of Application

  1. Metal side facing into the room: This method offers the best technical solution for shielding. It also enables the easy removal of the wallpaper without leaving metallised residues on the wall. However, the result may not be as visually appealing.
  2. White wallpaper side facing into the room: A more visually appealing solution.

For the best shielding results, we recommend overlapping individual strips and smoothing them out with fine putty, followed by sanding. Alternatively, you can glue the strips edge-to-edge, which may result in minimal shielding losses for higher frequencies.

Invest in your space today and get your EMF shielding wallpaper delivered in 3-7 business days!

If you would like a free sample, please reach out to us at


  • High-frequency (HF) shielding up to 40 GHz
  • Low-frequency (LF) shielding with an electrically conductive surface
  • Eco-friendly manufacturing process using green electricity
  • FSC and OEKO-TEX 100 certified materials
  • TÜV-SÜD tested and approved


  • Comprehensive protection against harmful EMF radiation and electric fields
  • Suitable for various commercial and residential applications, including data centres and laboratories
  • Easy installation with two application methods for different visual preferences
  • Environmentally conscious choice with certified materials and eco-friendly manufacturing process


YSHIELD® ECO-P80 Wallpaper

  • Width: 90 cm Length: 100cm
  • Area : 0.9m2

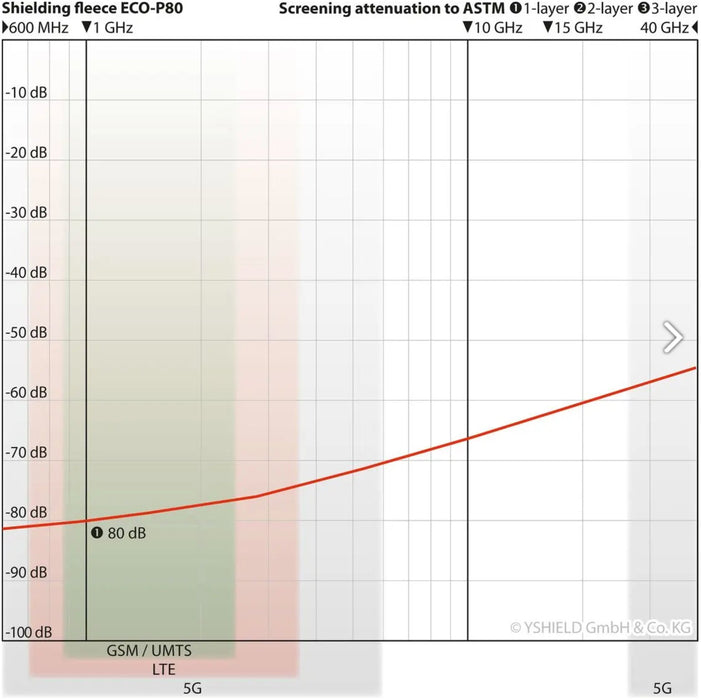

  • Attenuation: 80 dB / Surface conductivity: 0.002 ohm (square resistance)
  • Weight: 360 g/m² / Material thickness: 0.28 mm
  • Color: White / Silver
  • Tensile strength: 4400 (crosswise) - 6800 (lengthwise) N/m
  • Materials: Zink, cellulosic pulp, polyester fibres

    What's Included

    • YSHIELD® ECO-P80 EMF Shielding Wallpaper (Cut-to-size from 100m roll)
    • GSX Grounding Tape


    Each wallpaper set comes with self-adhesive grounding straps with conductive glue to bridge any cracks from the wallpaper application or overlapping wallpaper panels. It can be glued directly on shielding wallpaper, paints, fleeces, or other internal surfaces. Depending on what side you use to show in the room, the tape can be placed before wallpaper installation or after. This wallpaper is a conductive material & an adequately integrated grounding system will provide a low-resistance path for any electrical charges found from the wiring behind the walls to dissipate safely into the ground.

    You can earth a wallpapered surface or two continuous wallpapered surfaces by affixing a metal plate near a socket on either wall so that it makes good contact with the paint or wallpaper. A copper wire can connect the plate to any available earth; in this case, the standard Earth is typically the top hole in most UK electrical sockets.

    The grounding does not influence the shielding effectiveness for high-frequency radiation but how effective low-frequency electric alternating fields are shielded. An adequately grounded system is essential for safety as the wallpaper is electrically conductive.

    Two layers of the wallpaper is not recommended due to the shielding attenuation of one layer already being very high.


    • Due to the thick metal layer, the wallpaper may have sharp edges after cutting.
    • Exercise caution and wear protective gloves during installation.


    Kindly understand that due to the unique nature of this product and its custom sizing, we regret to inform you that returns can only be accepted in the event of a manufacturing defect or if the item is received in a faulty condition. If you have any questions, please do not hesitate to contact us at
