Description

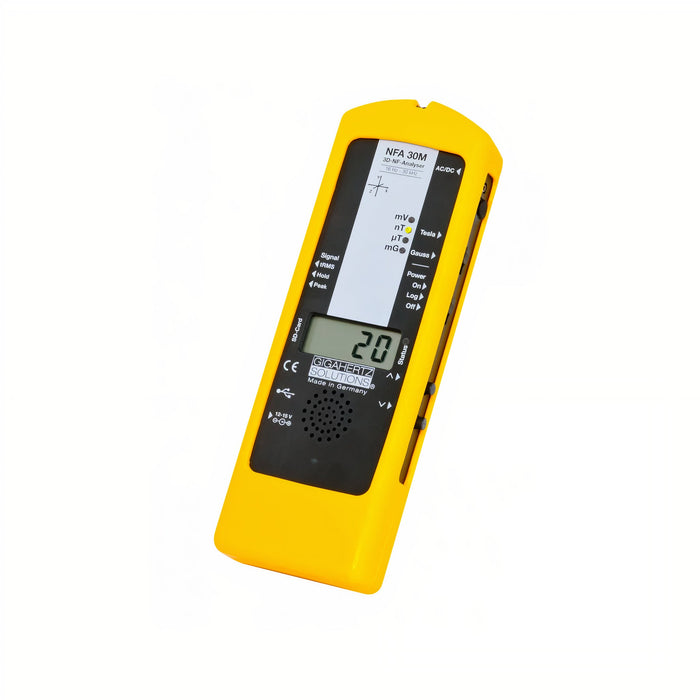

Gigahertz Solutions NFA30M - An Advanced 3D AC Magnetic Field Meter with Data-logging Capabilities

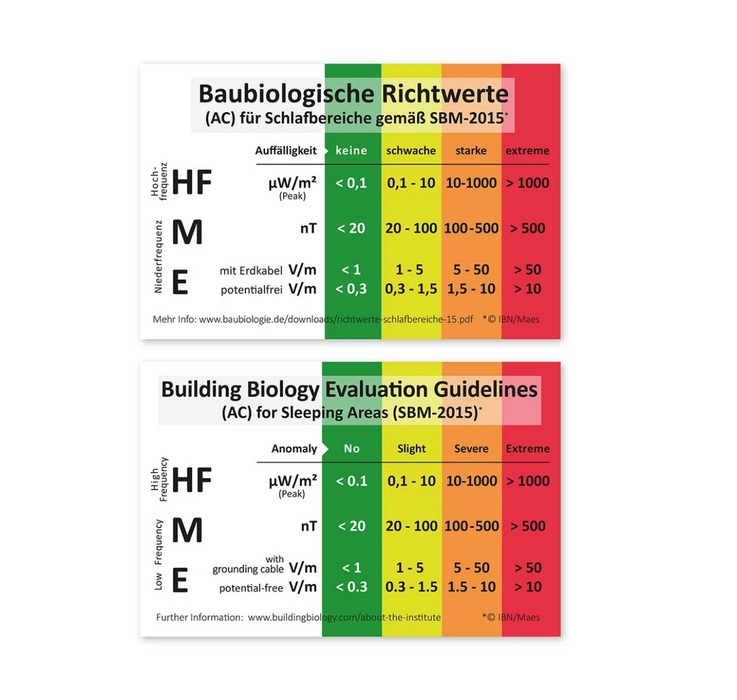

This meter is designed to meet Building Biology EMF measurement performance requirements, providing accurate 3D AC magnetic field measurements. The device ships with "NFASoft" Data Analysis Software and can also log radio frequency (RF) output from the HF59B and the HFW59D.
Uncover Unexpected EMF Pollution with Long-term Magnetic Field Recordings
The NFA30M revolutionises the significance of long-term magnetic field recordings, enabling multi-channel, frequency-specific, 3D recording over 48 hours to reveal unexpected peaks of EMF pollution (i.e. at night). The intuitive NFAsoft Data Analysis software facilitates detailed survey reporting and is included with the device.
Unique Features for Comprehensive EMF Analysis & Continuous Measurements
The NFA30M offers a range of unique features to provide comprehensive EMF analysis:
- Parallel recording of the true 3D value of the magnetic field, three axes of the field, railway and mains current, as well as natural and artificial harmonics ("dirty power").
- Powerful PC evaluation software NFAsoft included, offering extensive graphics and statistics functions (e.g., 95th percentile).
- Continuous measurement with intermediate maxima stored 10 times per second on the supplied SD card.
- Input socket for simultaneous RF recording with an external RF analyser or deeper analysis using a current clamp/current loop.
- Compact integrated sensor for the magnetic field allows precise measurement even in highly inhomogeneous fields.
- Li-ion batteries for 48 hours of uninterrupted recordings at ten full data sets per second.
Take Control of Your EMF Exposure with the NFA30M
Ensure you are aware of the EMF levels you are exposed to with the Gigahertz Solutions NFA30M EMF Meter. Its advanced features, data-logging capabilities, and analysis tools make it an essential instrument for anyone concerned about EMF exposure. Invest in the NFA30M today!
Features
- Parallel to the true 3D value of the magnetic field in the entire frequency range, the three axes of the field, railway and mains current as well as natural and artificial harmonics are recorded separately.
- Powerful PC evaluation software NFAsoft included. Extensive graphics and statistics functions (eg 95th percentile, etc.).
- Continuous measurement guaranteed - even intermediate maxima are stored 10 times per second on the supplied SD card.
- Input socket for simultaneous RF recording with external RF analyser, or deeper analysis using current clamp / current loop.
- Compact integrated sensor for the magnetic field allows precise measurement even in very inhomogeneous fields.
- Li-ion batteries for 48 hours of uninterrupted recording at ten full data sets per second.

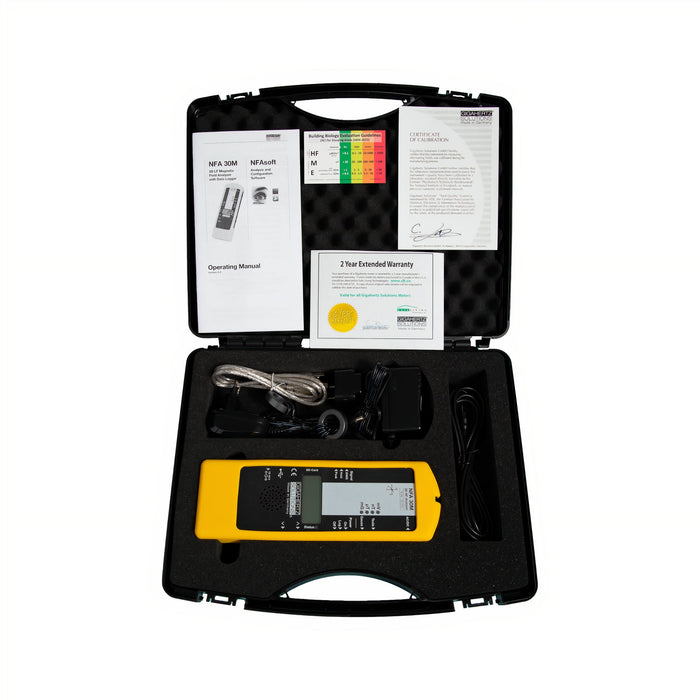

What's Included
- NFA 30M EMF Meter Users Guide
- 2 Year Warranty Certificate
- Ships with NFAsoft - Data analysis software - Loaded on SD memory card
- Standard Factory Calibration Certificate

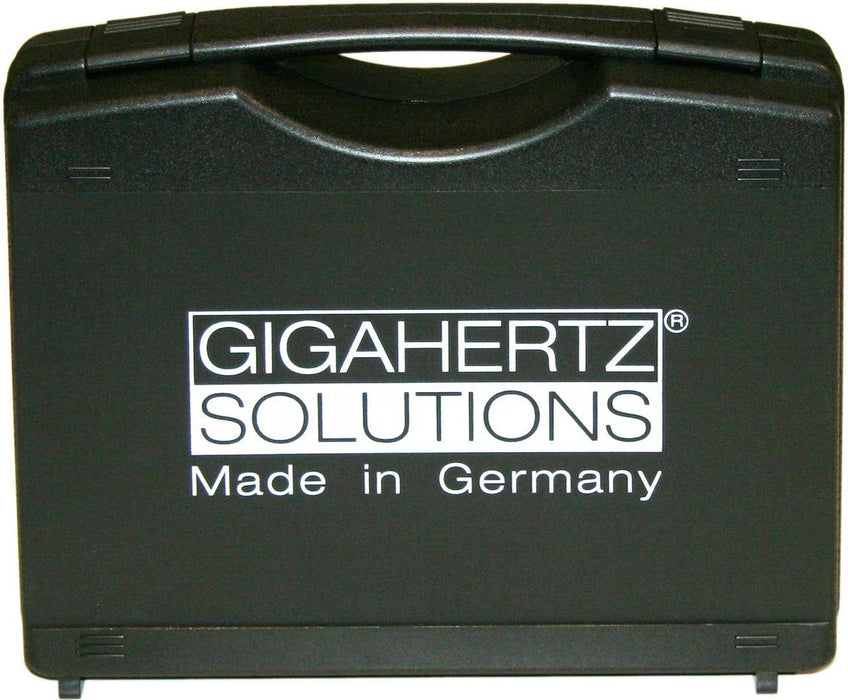

- Plastic Carrying Case
- Rechargeable Battery Pack with Charger/Power Supply
- 4 GB High Speed SD Memory Card
- USB Interface Cable
- Interface Cable (2.5 mm to 2.5 mm) – For connection to HFE59B
- Silicone Protective Cover - YellowÂ
Specs
| Item weight: |
1,50Â kg
|
| Frequency range: |
16 Hz - 32 KHz (compensated)
|
| Scope of delivery: |
Measuring device with silicone holster incl. evaluation software NFAsoft
16 GB SDHC SD card, USB cable (only for PCs with Windows or Linux), internal Li Ion battery, power supply/charger, detailed operating instructions,
Delivery in matching plastic caseÂ
|
| Measurement range: |
Magnetic flux density: 1 - 19,990 nT
|
| Precision: |
50 / 60 Hz: +/- 5 %
16 Hz - 30 kHz: +/- 1 dB
Isotropic reduction: +/- 1,5 dB
Offset +/- 5 digits
|
| Sensor: |
magnetic flux density, 3D
|
| Signal rating: |
trueRMS, peak value, peak hold
|
| Power supply: |
7.4-volt Li-ion high-capacity battery pack (included), average operating time in recording mode 48 h
Low-Batt. indicator
Auto power-off function (deactivated for long-term measurements)
Mains/charger unit (included in delivery)
|
| Warranty: |
2 years
|
